Victron BatteryProtect 12/24V 220A | BPR000220400
Intelligent Battery Protection Device
CA$159.85CA$139.49
Victron BatteryProtect 12/24V 220A | BPR000220400
Victron BatteryProtect 12/24V 220A | BPR000220400
Protect Your Batteries from Deep Discharge and Extend Battery Life

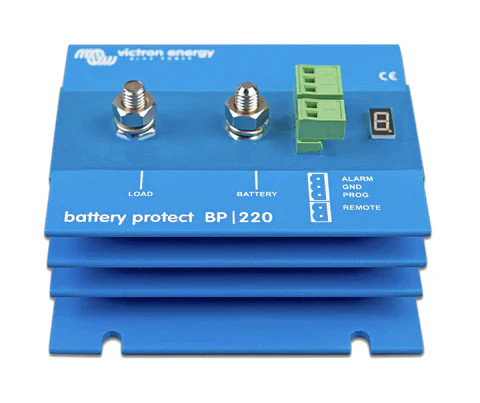

The Victron BatteryProtect 12/24V 220A (BPR000220400) safeguards your battery by automatically disconnecting non-essential electrical loads before the battery voltage falls to a damaging level. It also prevents excessive battery discharge that could leave insufficient power to start your engine.
Designed for 12V and 24V DC systems, the BatteryProtect intelligently monitors battery voltage and reconnects the load once the battery has recovered. This helps maximize battery life while ensuring reliable power for your marine, RV, off-grid, and mobile electrical systems.
The BatteryProtect is a uni-directional device, meaning current flows in only one direction. It is designed for either protecting loads or controlling charging circuits—but not both simultaneously. When protecting loads, connect the battery to the Battery terminal and the load to the Load terminal.
Built with Victron Energy's renowned reliability, the BatteryProtect offers simple installation, low power consumption, and dependable battery protection for demanding marine environments.
Key Features
Automatically disconnects non-essential loads before battery damage occurs
Prevents excessive battery discharge
Ensures sufficient battery power remains for engine starting
Suitable for both 12V and 24V DC systems
High continuous current rating of 220A
Intelligent automatic reconnect function
Ultra-low current consumption
Solid-state design with no moving parts
Simple installation and operation
Ideal for marine, RV, camper, off-grid, and industrial applications
Ideal Applications
Boats and yachts
RVs and camper vans
Off-grid solar systems
Marine house battery banks
Engine starting battery protection
Mobile power systems
Specification | Details |
|---|
Model | BPR000220400 |
Operating Voltage | 12V / 24V DC |
Continuous Current | 220A |
Peak Current | 600A (30 seconds) |
Operating Voltage Range | 6–35V DC |
Connections | M8 Terminals |
Dimensions (H × W × D) | 62 × 123 × 120 mm (2.5 × 4.9 × 4.8 in) |
Weight | 0.8 kg (1.8 lb) |
Operating Temperature | -40°C to +40°C |
IP Rating | Electronics: IP67 (potted), Connections: IP00 |
Why Choose the Victron BatteryProtect?
Deeply discharging batteries significantly shortens their lifespan and may leave you stranded without enough power to start your engine. The Victron BatteryProtect automatically protects your investment by disconnecting non-essential loads before battery voltage becomes critically low, providing peace of mind whether you're on the water or off the grid.
